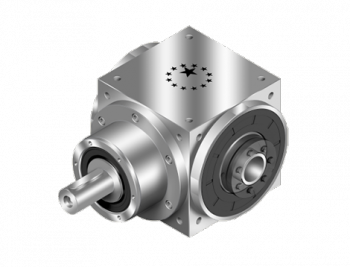

APEX Reducer

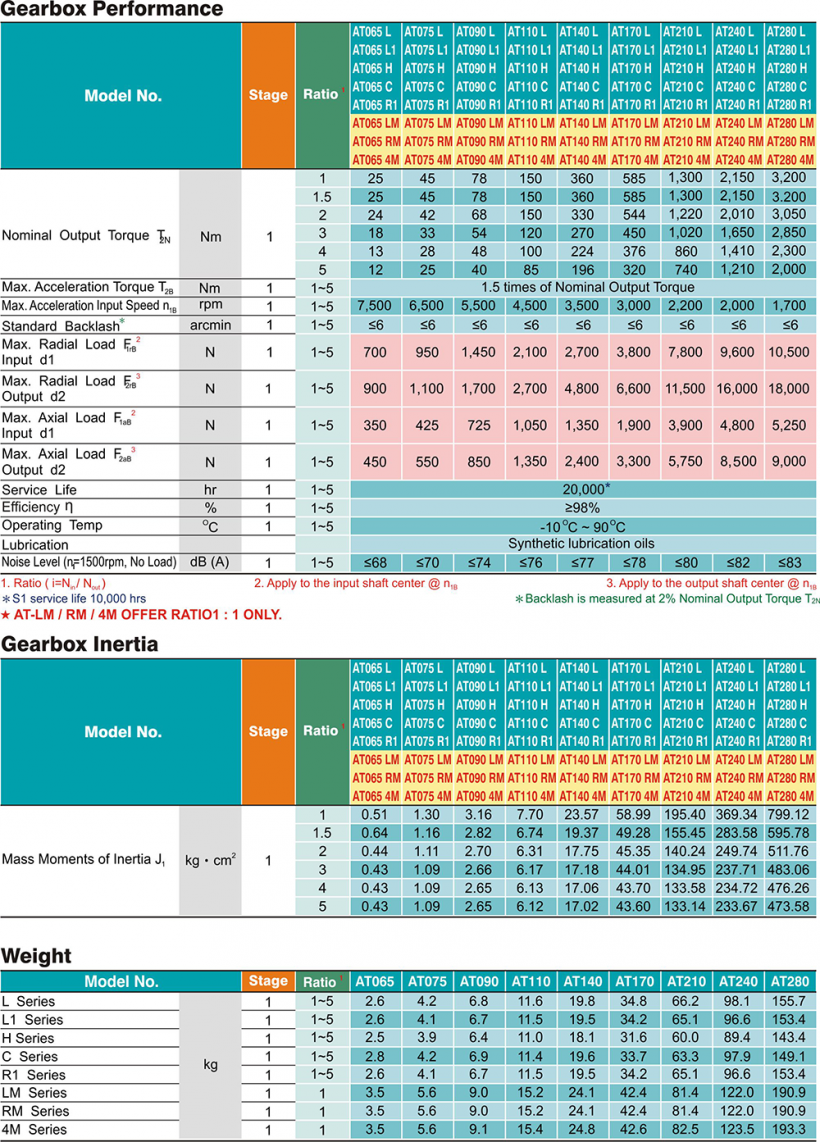

Output torque
T2N :12 Nm - 3,200 Nm
Ratios:
1-stage :1 / 1.5 / 2 / 3 / 4 / 5
Low backlash
1-stage :≤6 arcmin
High efficiency
1-stage : ≧ 98%
Easy mount
Low noise
Compact structure

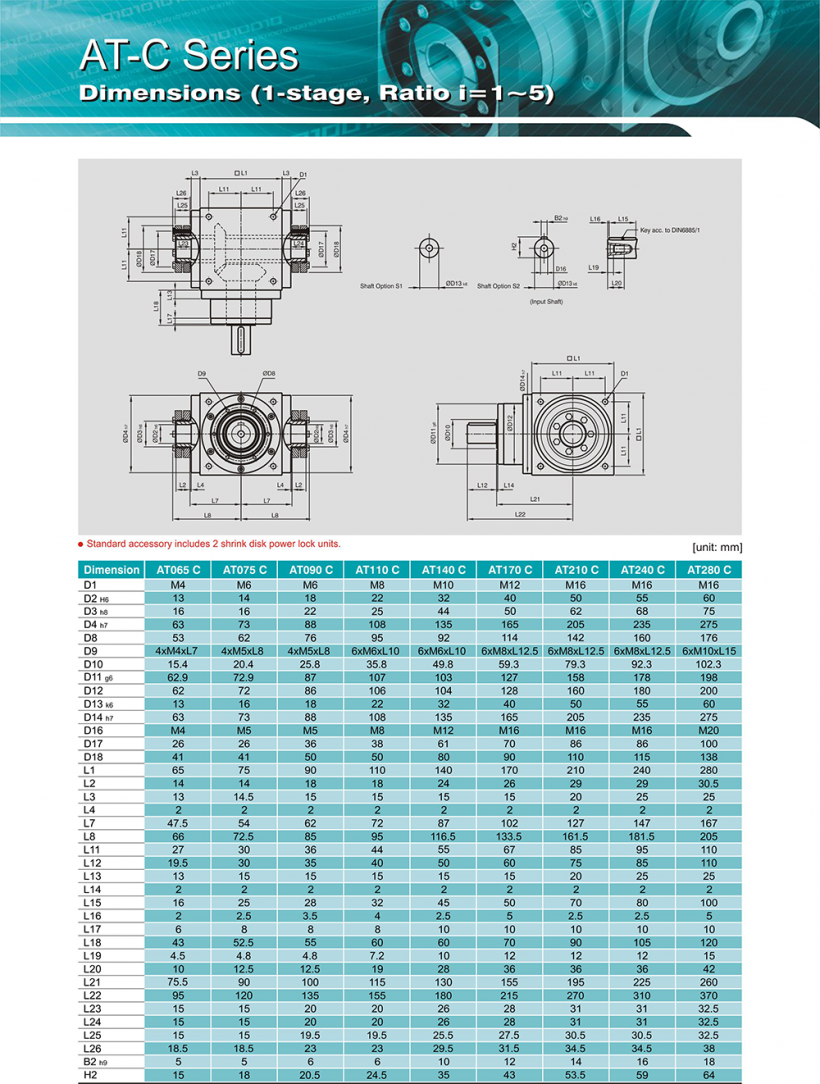

SIZE

AT065C / AT075C / AT090C / AT110C / AT140C / AT170C / AT210C / AT240C / AT280C
