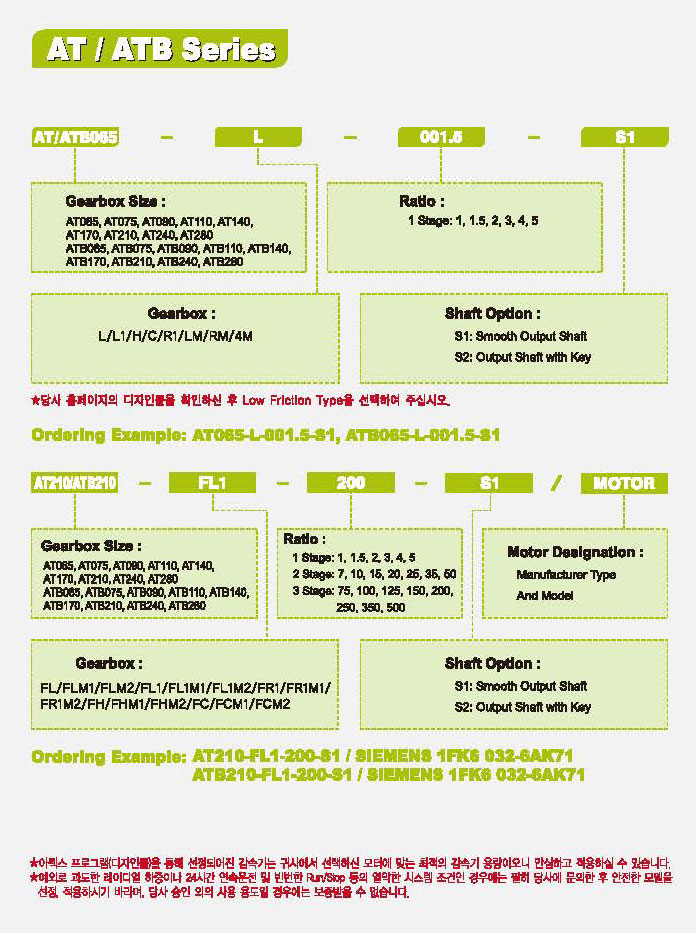

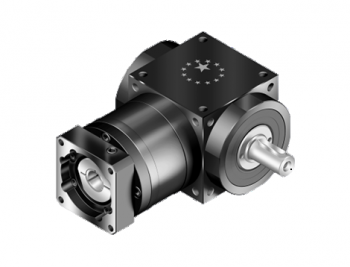

이전글 다음글 본문 ATB-FL1/FR1 SERIES High Precision Gearbox DESCRIPTION SPECIFICATIONS DIMENSIONS ORDERING CODE Output torque T2N :12 Nm - 3,200 NmRatios: 1-stage :1 / 1.5 / 2 / 3 / 4 / 5 2-stage :7 / 10 / 15 / 20 / 25 / 35 / 50 3-stage :75 / 100 / 125 / 150 / 200 / 250 / 350 / 500Low backlash 1-stage :≦6 arcmin 2-stage :≦8 arcmin 3-stage :≦10 arcminHigh efficiency 1-stage : ≧ 98% 2-stage : ≧ 94% 3-stage : ≧ 94%Easy mountLow noiseCompact structure Material: Cast Iron with black oxidizing. DESCRIPTION SPECIFICATIONS DIMENSIONS ORDERING CODE - DESCRIPTION SPECIFICATIONS DIMENSIONS ORDERING CODE - DESCRIPTION SPECIFICATIONS DIMENSIONS ORDERING CODE 제품 라인업
